Coupled well-reservoir models


We are interested in mathematical models for various coupled well-reservoir flow systems like






Dual Gradient Drilling method for deepwater






















































































































Relevant publications

[1] S. Evje and K.H.Karlsen, A hyperbolic-elliptic model for coupled well-porous media flow,      In Eleventh International Conference on Hyperbolic Problems: Theory, Numerics, Applications (Lyon 2006). Edt: S. Benzoni-Gavage and D. Serre, Jan 28, 2008.

[2] S. Evje and K.H.Karlsen, Hyperbolic-elliptic models for well-reservoir flow, Networks and Heterogenous Media, vol 4 (1), 639-773, 2006.



**************************************************************************************************************

                Copyright 2002-2005 Your Web Site Inc. All Rights Reserved.
Main Page

Research

  - transport-reaction

  - two-phase gas-liquid

  - coupled well-reservior

Publications

Projects

Bachelor/Master

Graduate Students

People

Family



  Main Page     Research    Publications    Projects    Bachelor/Master    Students    People

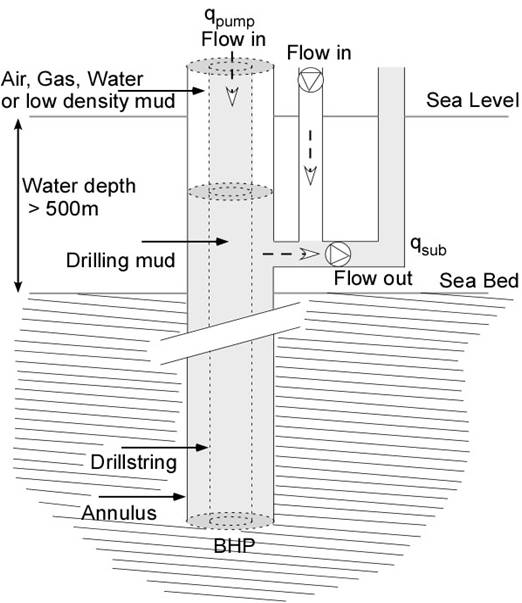

Left: A schematic figure of a well with drillstring and annulus relevant for a dual gradient drilling (DGD) flow system. The free air/mud interface is seen in the riser (upper part of annulus). The location of the interface can be adjusted actively to control the pressure in the well by means of the mud pump mounted on the riser.

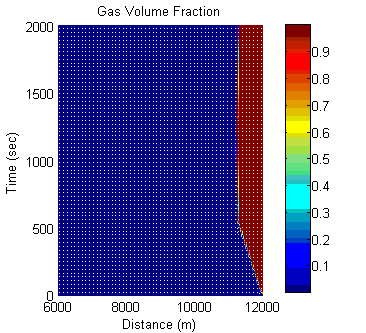

Middle: The movement of the mud/air interface.

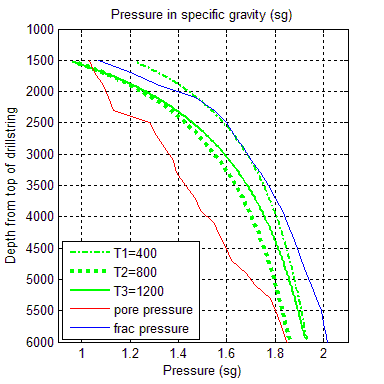

Right: Pressure profiles in annulus (green curve) produced by a DGD flow system where the position of the mud-air interface is varied as shown in the middle figure. The main goal is to ensure that pressure lies above pore pressure (red curve) and below fracture pressure (blue curve). The different pressure curves at times T1, T2, and T3, correspond to different circulation rates and different levels of the air/mud interface.
Example with gas-kick

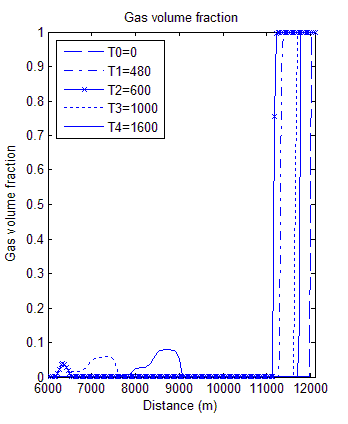

Top: Influx of gas in the open zone after approximately 600 s due to the fact that well pressure drops below pore pressure, see right figure.

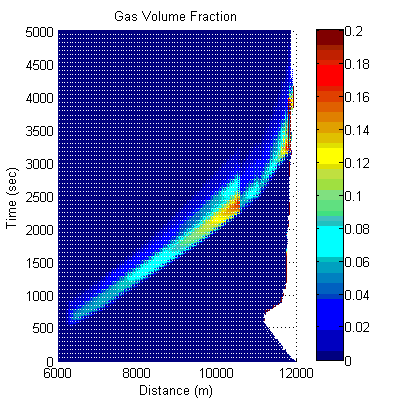

Left: The movement of the mud/air interface, influx of gas at the open zone, and migration of the gas up annulus.
Right: Pressure profiles in annulus (green curve) produced as a function of position of mud/air interface, mud density, and circulation rate.
